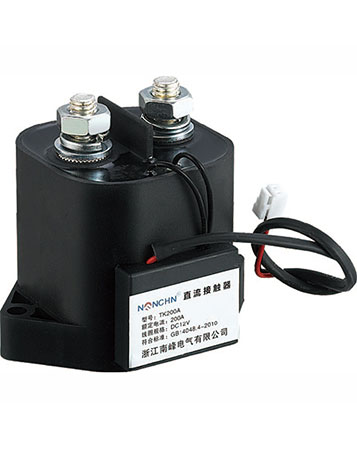

You're specifying a DC contactor for a battery-powered vehicle or high-voltage energy storage system. The contactor sits in an enclosure that sees dust, moisture, and temperature swings. A standard contactor might work in a clean panel, but expose it to the elements and the contacts corrode, the coil shorts, and the whole system goes down. A TK Series Type Fully Sealed High Voltage DC Contactor with IP67 protection is built for these conditions. The TK200A from Nanfeng Electric delivers 200A continuous current, 1400A inrush capability, and a fully sealed housing that keeps contaminants out. This article explains what IP67 sealing protects against, how the 200A rating translates to real applications, and what to verify before specifying a high-voltage DC contactor.
What Does IP67 Protection Actually Deliver?
IP67 is an ingress protection rating that defines how well an enclosure resists dust and water. The "6" means the housing is dust-tight — no particles can enter, even under negative pressure. The "8" means the enclosure can withstand temporary immersion in water up to 1 meter for 30 minutes without harmful effects. For a DC contactor installed in an electric vehicle, an electric forklift, or outdoor energy storage equipment, this level of sealing is not optional. The TK200A is rated IP67, meaning the internal contacts, coil, and mechanism are protected from the dust, moisture, and wash-down that these environments present. The contactor's protection grade is IP67, with a working temperature range of -20°C to +85°C and vibration resistance rated for sine shock at 2.5g (5-50Hz) and impact at 50g, 11ms (half sine). These ratings confirm that the contactor performs reliably in mobile and outdoor applications.
What the IP67 Rating Protects Against
The sealed housing prevents dust from reaching the contacts and coil, eliminating the contamination that causes contact resistance to climb. Moisture protection prevents corrosion of the terminal connections and internal components. The result is stable electrical performance over the contactor's service life, even in environments where unsealed contactors would fail prematurely.
Environmental Ratings for Mobile Equipment
The TK200A is designed for mounting altitude up to 2Km, with a vibration rating of 2.5g (5-50Hz) and impact resistance of 50g, 11ms (half sine). These specifications cover the mechanical stresses of vehicle-mounted applications, where road vibration and shock are constant.
How Does the 200A Rating Translate to Real Applications?
The TK200A is rated for 200A continuous current at a contact voltage of DC 220V. This is a high-current rating that covers the main power switching circuits in battery-powered equipment. The contactor is used to control the switching on/off of power supply for storage battery cars, electric forklifts, electric winches, electric cars, excavators, and air conditioners in vehicles. These applications require the contactor to handle the full battery current during normal operation and to withstand the inrush current that occurs when a load is first connected. The instantaneous maximum current rating is 1400A for up to 1 second, which covers the inrush that motors and capacitive loads draw at startup. The contact overload capability is also specified: 1000A for ≥20s, 800A for ≥45s, 600A for ≥90s, and 400A for ≥5min. These ratings define how long the contactor can carry overcurrent before the temperature rise exceeds safe limits.
Contact Material and Switching Performance
The contacts are made from AgCuO(10) — a silver-copper oxide material selected for its resistance to arc erosion and welding. The contact voltage drop is ≤100mV, minimizing energy loss and heat generation at the contact interface. The switching load capacity is specified at DC450V, 80A; DC380V, 100A; and DC320V, 15A, covering the range of voltage and current combinations used in battery-powered equipment.
Coil Specifications and Power Consumption
The coil is available in 12V and 24V DC specifications. The pickup voltage is ≤75% of rated voltage, and the release voltage is ≥5% and ≤60% of rated voltage. The coil's starting current is ≤3.0A, and the holding current is ≤1.0A, with maintain power ≤3W. This low holding power reduces the continuous load on the control circuit and minimizes heat generation inside the sealed housing.
TK200A: Key Specifications for System Design
| Parameter | Specification |
|---|---|
| Model | TK200A |
| Contact Type | One pair of bridge type moving open (NO) contacts |
| Rated Voltage of Contacts | DC 220V |
| Rated Current | 200A |
| Instantaneous Max Current | 1400A, ≤1s |
| Switching Load Capacity | DC450V 80A; DC380V 100A; DC320V 15A |
| Contact Voltage Drop | ≤100mV |
| Contact Material | AgCuO(10) |
| Coil Voltage | 12V, 24V DC |
| Pickup Voltage | ≤75% Us |
| Release Voltage | ≥5% Us; ≤60% Us |
| Pickup Time | ≤30ms |
| Release Time | ≤50ms |
| Coil Starting Current | ≤3.0A |
| Coil Holding Current | ≤1.0A |
| Maintain Power | ≤3W |
| Insulation Resistance | ≥100MΩ |
| Dielectric Withstand Voltage | 1500V, p.f. 1min, no breakdown |
| Protection Grade | IP67 |
| Working Temperature | -20°C to +85°C |
| Vibration | Sine shock: 2.5g, (5-50) Hz |
| Impact | 50g, 11ms (Half sine) |
| Mechanical Cycles | ≥30 × 10⁴ |
| Electric Cycles | ≥1 × 10⁴ |
Mechanical and Electrical Life Ratings
The mechanical life is rated at ≥30 × 10⁴ cycles, and the electrical life is ≥1 × 10⁴ cycles. These ratings define the contactor's service life under normal switching conditions. The mechanical life covers the actuator and mechanism, while the electrical life accounts for contact erosion under load.
Temperature Rise and Terminal Specifications
The temperature rise on the outgoing terminal is ≤65K after 1 hour of operation. The coil temperature rise is ≤85K. The outgoing terminal torque for the M8 contact connection is ≤9.0 N·m. These specifications ensure that the contactor operates within safe thermal limits and that the terminal connections remain secure under vibration.
Where Does a Sealed High-Voltage DC Contactor Deliver the Most Value?
The TK200A serves applications where high current, high voltage, and environmental protection are all required. Battery-powered vehicles, material handling equipment, and mobile machinery all rely on sealed contactors to switch the main power circuit reliably.
-
Storage battery cars — main power switching for battery-electric utility vehicles
-
Electric forklifts — traction battery connection and disconnection
-
Electric winches — high-current motor control in marine and industrial applications
-
Electric cars — battery pack switching and DC power distribution
-
Excavators — DC power control in hybrid and electric construction equipment
-
Vehicle air conditioners — DC compressor and blower motor switching
Battery-Powered Vehicles and Material Handling
Electric forklifts and storage battery cars use the TK200A to switch the main battery circuit. The 200A rating handles the traction current, and the 1400A inrush rating covers the startup current of the drive motor. The IP67 sealing protects the contactor from the dust, moisture, and wash-down that these vehicles encounter daily.
Electric Winches and Construction Equipment
Electric winches and excavators operate in harsh outdoor environments. The TK200A's sealed housing and wide temperature range (-20°C to +85°C) ensure reliable operation in cold storage yards, hot construction sites, and wet marine conditions.
Answers to Common Questions About High-Voltage DC Contactors
What does the "fully sealed" construction actually protect?
The fully sealed housing provides IP67 protection — dust-tight and resistant to temporary water immersion. This protects the contacts, coil, and mechanism from dust, moisture, and contaminants that would cause corrosion and contact resistance to increase. The sealing also prevents the ingress of flammable gases in hazardous locations.
What is the difference between pickup voltage and release voltage?
Pickup voltage is the minimum voltage required to energize the coil and close the contacts. The TK200A's pickup voltage is ≤75% of rated voltage, meaning a 12V coil will pick up at 9V or less. Release voltage is the voltage at which the contacts open. The release voltage is ≥5% and ≤60% of rated voltage. The gap between pickup and release provides hysteresis that prevents chattering.
What maintenance does the contactor require?
The contactor is a sealed unit with no user-serviceable internal components. Routine inspection should verify that the terminal connections are tight (M8 torque ≤9.0 N·m) and that the housing is not damaged. If the contactor fails to pick up or release, or if contact resistance increases beyond specification, replacement is the standard practice.
Can the contactor be used in high-altitude applications?
Yes. The TK200A is rated for mounting altitude up to 2Km. Above this altitude, the reduced air density affects heat dissipation and dielectric strength. For applications above 2Km, derating or alternative specifications may be required.
Request a Sealed High-Voltage DC Contactor Configuration
A TK Series Type Fully Sealed High Voltage DC Contactor with 200A rating, IP67 sealing, and 1400A inrush capability is the practical choice for battery-powered vehicles and high-voltage DC power systems. The TK200A Type Fully Sealed High Voltage DC Contactor from Nanfeng Electric delivers 200A continuous current, DC 220V contact voltage, 1400A ≤1s instantaneous current, AgCuO(10) contact material, IP67 protection grade, -20°C to +85°C working temperature, and 1500V dielectric withstand voltage.
Whether you're designing electric vehicle power systems, forklift battery circuits, or mobile equipment DC switching, this contactor offers the current capacity and environmental protection that demanding applications require. With a fully sealed housing and AgCuO contacts, it delivers reliable performance in dust, moisture, and vibration.
Contact Nanfeng Electric for a high-voltage DC contactor configuration assessment → their team can help you select the right coil voltage, contact configuration, and mounting arrangement for your specific battery voltage and load requirements. Get a TK Series Type Fully Sealed High Voltage DC Contactor that keeps the power flowing — no matter what the environment throws at it.
