The HV contactor is mainly used to control switching on/off of power supply of storage battery car,electric forklift, electric winch, electric car,excavator, air conditioner in vehicle
Application

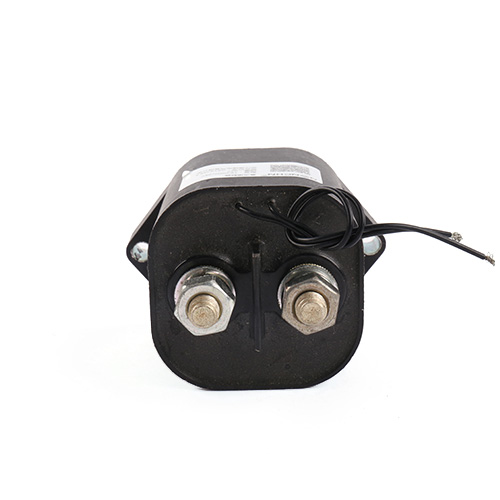

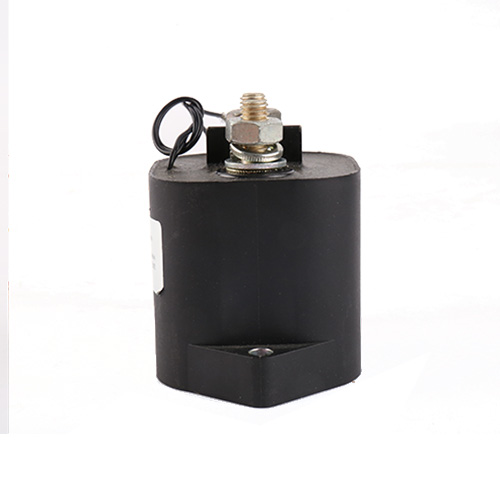

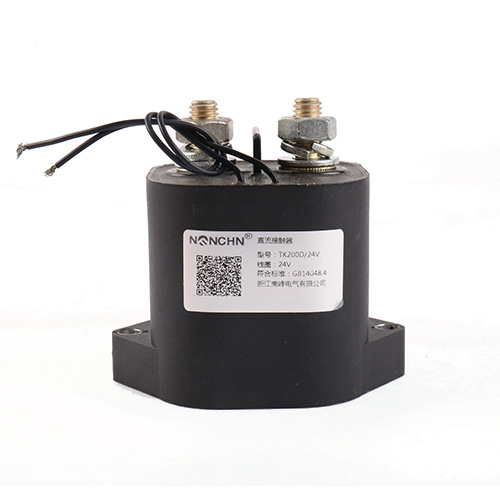

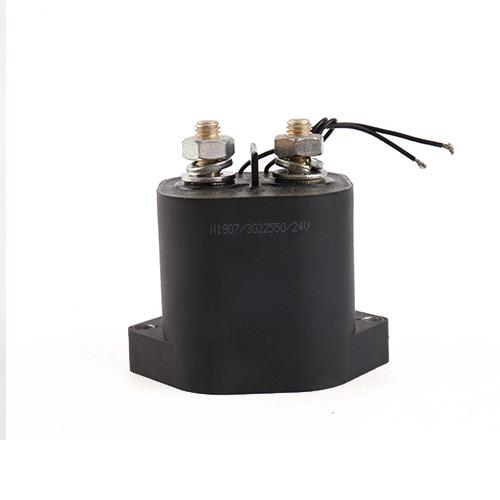

Nanfeng Electric is a DC Contactor manufacturer and supplier, manufacturing TK200D Type Fully Sealed High Voltage DC Contactor, providing technical consultation, maintenance support, and fast after-sales service.

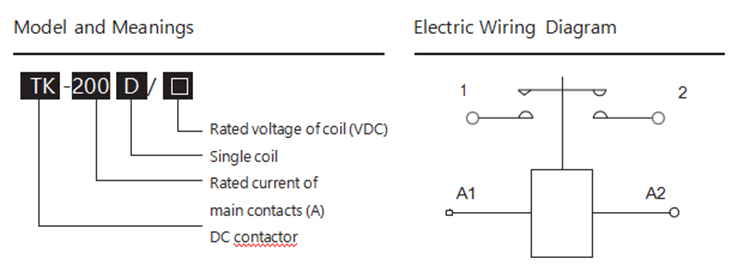

Ordering Notice
For example: TK200D/12V
The DC contactor of main contact is one NO, rated voltage not more than DC 96V, current 200A, coil
| Basic Technical Parameters (at normal conditions) | ||||
| Electric Parameters | ||||
| Contact type | One pair of bridge type moving open (NO) contacts |
Instantaneous maximum current | 1400A,≤1s | |
| Rated voltage of contacts (DC) | 96V,200A | Insulation resistance(MΩ) | ≥100 | |
| Voltage drop on contacts(mV) | ≤80 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown | |
| Contact overload capability | 1000A | ≥20s | Electric cycles (104) | ≥1 |
| The test was terminated when the temperature rise of the outlet reached 65K. Record power-on time |
800A | ≥45s | Mechanical cycles (104) | ≥30 |
| 600A | ≥90s | Temperature rise on outgoing terminal | ≤65 | |
| 400A | ≥5min | Temperature rise of coil(K) | ≤85 | |
| Coil voltage specification(DC) | 12, 24, 36, 48etc | Material of contact | AgCuO(10) | |
| DC power consumption of coil (W) | ≤8.5 | Working duty | Long term | |
| Pickup voltage(DC) | ≤75%Us | Acting frequency | ≤1Hz | |
| Release voltage(DC) | ≥5%Us; ≤60%Us | |||
| Pickup time(ms) | ||||
| Release time(ms) | ||||
| Mechanical/Ambient Conditions | ||||
| Torque of outgoing terminal on contact M8(N.m) |
≯9.0N appropriate | Protection grade | IP67 | |
| Leading mode of coil | High temperature insulated multiple-stranded CU wire |
Mounting methods | Freely | |
| Working temperature | (-25~+85)°C | Vibration | Sine shock: 2.5g, (5~50) Hz | |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) | |
| Conversion Table for Coil Specification(20°C) | ||||
| Voltage(V) | Coil resistance(1±10%)Ω | Voltage(V) | Coil resistance(1±10%)Ω | |
| 12 | 17.3 | 48 | 270 | |
| 24 | 72 | 60 | 433.7 | |
| 36 | 156 | 72 | 624.5 | |

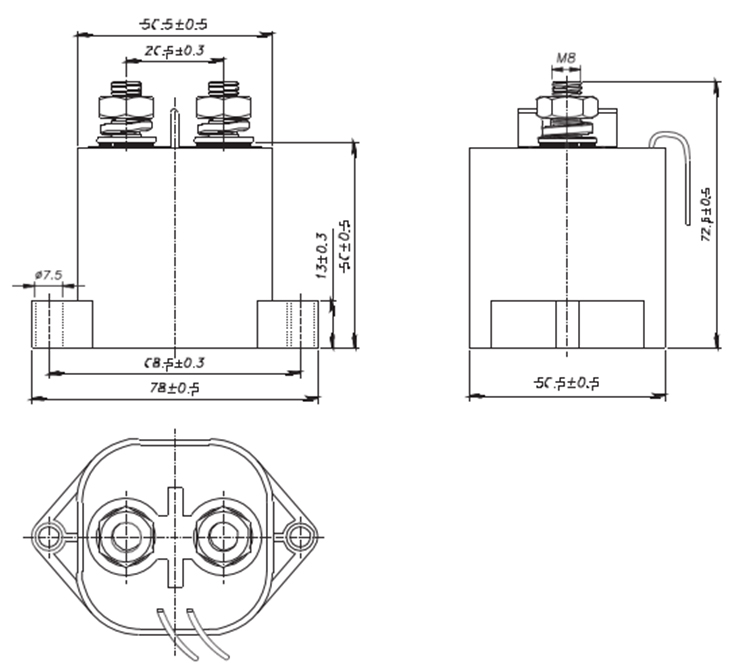

Outline and Mounting Picture
