You're designing a power system for an electric forklift or an industrial winch. The battery delivers high current, the motor demands reliable switching, and a failed component means downtime. A mechanical switch won't last. A standard AC relay won't work. You need something built for DC.

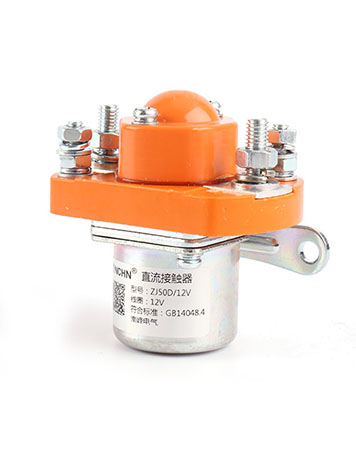

A DC contactor is the answer — a heavy-duty switching device designed specifically for direct current circuits. Unlike AC contactors, DC contactors must handle the challenge of DC arcs, which don't self-extinguish the way AC arcs do. The ZJ50D series is rated for 50A continuous current with peak surge capability, available in 12V, 24V, and 48V DC coil configurations. This guide covers what makes DC contactors different, where they're used, and how to choose the right one for your equipment.
Designed for the demands of DC switching
DC circuits present challenges that AC circuits don't. A DC contactor is engineered to handle those challenges reliably.
The arc problem — and how DC contactors solve it
When a contact opens under load, an arc forms. In AC circuits, the current crosses zero 100 or 120 times per second, giving the arc a natural extinction point. DC current never crosses zero — the arc continues until the contacts are far enough apart to extinguish it. That means DC contactors need larger contact gaps, faster opening speeds, and arc chambers designed to stretch and cool the arc. The ZJ50D is built with this in mind, using arc chambers and contact materials engineered to extinguish DC arcs reliably.
Contact materials that resist welding
DC arcs generate high temperatures at the contact surface. Soft metals like copper or silver can weld together under sustained arcing. DC contactors use contact materials — typically silver alloys with tungsten or cadmium oxide — that resist welding and erosion. The result: longer contact life and more reliable switching.
Mechanical and electrical life that matters
The ZJ50D series offers mechanical life of 100,000 cycles or more, with electrical life rated for thousands of operations at full load. For equipment that cycles frequently — electric vehicles, forklifts, winches — that durability translates into less downtime and lower maintenance costs.
Where DC contactors are used
DC contactors are found wherever high-current DC loads need to be switched reliably. The list is broad and growing.
Electric vehicles and forklifts
Electric forklifts, pallet trucks, and light electric vehicles all rely on DC contactors for power control. The ZJ50D is commonly used in these applications, switching battery power to traction motors and hydraulic systems. In forklifts, reversing contactors control motor direction — forward and reverse — with a single component.
Winches and electric hoists
Electric winches and hoists draw high current at low voltage. The DC contactor must handle the inrush current of a stalled motor while providing reliable switching under load. The ZJ50D handles these conditions with a 50A continuous rating and the ability to interrupt high DC loads.
Battery systems and renewable energy
Battery banks, solar storage systems, and UPS systems all use DC contactors for power distribution and protection. In these applications, the contactor may switch between charging and discharging modes, or isolate the battery in fault conditions.
Choosing the right coil voltage
The coil voltage determines how the contactor is controlled. Selecting the wrong voltage leads to unreliable operation or coil failure.
Match the coil to your control circuit
The ZJ50D series is available with coil voltages of 12V, 24V, and 48V DC. Choose the voltage that matches your control system — typically the same as the battery voltage in vehicle applications. A 12V coil on a 48V system will burn out immediately. A 48V coil on a 12V system won't pull in.
Pick-up and drop-out voltage matter
The cold pick-up voltage (the minimum voltage required to close the contactor) is typically no more than 66% of rated coil voltage. The drop-out voltage (the voltage at which the contactor opens) is typically no more than 30% of rated voltage, and no less than 5%. These values ensure that the contactor operates reliably even with voltage drops in the control circuit.
Coil power consumption
The ZJ50D coil consumes low power, making it suitable for battery-powered equipment where energy efficiency is important. Low coil consumption preserves battery life while providing reliable switching performance.
Questions equipment designers ask
Q: What's the difference between a DC contactor and a DC relay?
A: DC contactors are designed for higher current loads — typically 50A and above — with arc chambers and contact materials optimized for DC switching. DC relays handle lower currents and don't have the same arc interruption capability. For motor control and power switching, use a contactor. For signal switching and low-current control, use a relay.
Q: How do I mount a DC contactor?
A: DC contactors are typically panel-mounted with through-bolts or brackets. Ensure the mounting surface is flat and the contactor is securely fastened. Vibration can loosen connections and affect contact alignment. The ZJ50D is designed for industrial environments with robust mounting provisions.
Q: What is the operating temperature range?
A: DC contactors are typically rated for operation from -25°C to +70°C. For extreme environments, specialized versions are available. Always check the manufacturer's specifications for your specific application.
How to specify the right DC contactor
Getting the right DC contactor starts with understanding your application's requirements.
Define your load type and current
Resistive or inductive? Continuous or intermittent? The load type determines the contactor's current rating and contact material. For motor loads, the inrush current can be several times the steady-state current — so oversizing is essential.
Choose the right coil voltage
Match the coil voltage to your control circuit. Common options include 12V, 24V, and 48V. If your system uses a different voltage, confirm availability with the manufacturer.
Account for environmental conditions
Temperature, humidity, and vibration all affect contactor life. For harsh environments, consider sealed or encapsulated contactors. The ZJ50D is designed for industrial use, but verify the environmental ratings for your specific application.
How to get the right DC contactor
The ZJ50D DC contactor is designed for high-current DC switching applications in electric vehicles, industrial machinery, and battery systems. Its robust construction, arc suppression features, and reliable operation make it suitable for demanding environments.
Before you commit to a DC contactor, evaluate your load type, current requirements, and environmental conditions. The right contactor ensures reliable power switching and long service life.
Ready to specify DC contactors for your next project? Contact a supplier for a quote or technical consultation on the ZJ50D series. Share your load type, voltage, current, and coil requirements — their team can recommend the right DC contactor configuration for your specific application.
