You‘re designing a power system for an electric vehicle, a forklift, or an industrial battery application. The DC circuit carries high current, and you need a switch that can handle it—safely, reliably, and repeatedly. That’s exactly what a DC Contactor does.

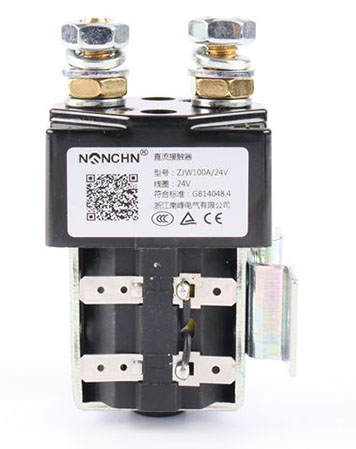

A DC contactor is an electrically controlled switching device designed to make or break DC power circuits, using a low-power control signal to switch high-current loads. The ZJW100A DC Contactor is engineered for these demanding applications, with a 100A continuous current rating, 80V DC rated voltage, coil voltage options from 6V to 220V, and response times under 30ms.
This guide covers the key specifications that define the ZJW100A’s performance—from contact design and arc suppression to coil selection and real-world applications—to help you determine if it’s the right fit for your system.
Rated for 100A Continuous Current
The ZJW100A is designed to handle high-current DC loads reliably, with specifications that ensure consistent performance under demanding conditions.
Contact Configuration
The contactor features a 1N.O. (normally open) main contact with a current rating of 100A at 80V DC. The contact resistance is ≤80mV, ensuring efficient power transfer with minimal energy loss.
Arc Suppression That Extends Contact Life
For coil voltages above 48V, the ZJW100A is equipped with magnetic blow-out arc suppression to ensure reliable arc extinction. This feature is critical in DC circuits, where arcing is more difficult to extinguish than in AC circuits. The contactor achieves an electrical life of ≥20,000 cycles under rated load, with mechanical life exceeding 300,000 cycles.
Rapid Response Time
The ZJW100A delivers cold-state pick-up time of ≤30ms and release time of ≤30ms. This rapid response is essential in safety-critical applications where the circuit needs to disconnect quickly in the event of a fault.
Dielectric Strength
The contactor provides dielectric strength of 1500V AC for 1 minute, ensuring reliable isolation between the coil and contact circuits and reducing the risk of leakage currents.
Coil Voltage Options from 6V to 220V DC
The ZJW100A offers a wide range of coil voltage options, making it adaptable to different control system requirements.
Available Coil Voltages
The contactor is available in coil voltages from 6V to 220V DC, including 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V, 120V, 150V, and 220V. This wide range means the relay can be used in systems with different control voltages without requiring additional voltage conversion components. The coil power consumption is ≤5W at 20°C.
Pick-Up and Drop-Out Characteristics
The relay’s pick-up voltage is ≤66% of rated coil voltage, with drop-out voltage ≤30% and ≥5% of rated coil voltage. These characteristics ensure reliable actuation even when control voltages fluctuate, while preventing unintended drop-out during normal operation.
Coil Temperature Rise
The coil temperature rise is rated at ≤85K, ensuring reliable operation even in warm environments without overheating the coil.
Built for Demanding Applications
The ZJW100A is used across a range of applications where high-current DC switching is required.
Electric Vehicles and Battery Systems
The contactor is designed for electric vehicles, electric cars, and battery-powered systems. It’s used to control the switching on and off of power supply in DC power systems, connecting and disconnecting the battery pack from the motor controller and charging system.
Material Handling Equipment
Electric forklifts, electric winches, and electric pallet jacks rely on DC contactors for power switching. The ZJW100A’s 100A capacity and fast response make it suitable for the frequent start-stop cycles of material handling equipment.
Industrial and Telecom Applications
The relay is also used in telecommunications equipment, uninterrupted power supplies, trains, and ships. In telecom applications, it controls power distribution in DC power systems. In industrial settings, it switches motors, hoists, and other heavy equipment.
Technical Specifications at a Glance
| Parameter | ZJW100A Specification |
|---|---|
| Contact Form | 1N.O. (normally open) |
| Rated Current | 100A |
| Rated Voltage | 80V DC |
| Contact Voltage Drop | ≤80mV |
| Coil Voltage Options | 6V – 220V DC |
| Pick-Up Voltage | ≤66% of rated coil voltage |
| Drop-Out Voltage | ≤30%, ≥5% of rated coil voltage |
| Pick-Up Time | ≤30ms |
| Release Time | ≤30ms |
| Electrical Life | ≥20,000 cycles |
| Mechanical Life | ≥300,000 cycles |
| Dielectric Strength | 1500V AC, 1min |
| Coil Power Consumption | ≤5W |
| Mounting Options | 1M, 2M |
| Arc Suppression | Magnetic blow-out (for >48V coils) |
Questions Design Engineers Ask
What’s the difference between a DC contactor and a DC relay?
The terms are often used interchangeably, but a contactor typically handles higher currents and is built for more demanding switching applications. DC contactors are designed with stronger arc suppression and larger contacts to handle the challenges of DC switching. The ZJW100A is a DC contactor rated for 100A continuous current, suitable for high-power applications like EV battery disconnects.
How do I choose the right coil voltage for my application?
Choose based on your control circuit voltage. If your control system runs on 12V (common in smaller vehicles and equipment), choose the 12V coil. If your system runs on 24V or 48V (common in industrial equipment and larger EVs), choose the corresponding coil. The ZJW100A is available in coil voltages from 6V to 220V DC, including 12V, 24V, 48V, and 72V.
What is the expected life of the ZJW100A under normal use?
The ZJW100A offers an electrical life of ≥20,000 cycles under rated load and a mechanical life of ≥300,000 cycles. The actual life depends on the switching frequency, load type, and environmental conditions.
Does the ZJW100A include arc suppression for high-voltage DC applications?
Yes. For coil voltages above 48V, the ZJW100A is equipped with magnetic blow-out arc suppression to ensure reliable arc extinction. This is a critical feature for DC switching applications where arcing is more difficult to extinguish than in AC circuits.
Why Nanfeng Electric
Choosing the right supplier for your DC contactor needs is about more than specifications—it’s about quality, consistency, and long-term reliability.
Nanfeng Electric is a professional manufacturer of DC contactors and electromagnetic relays, with a commitment to quality and technical innovation. The ZJW100A DC Contactor features 100A continuous current capacity, coil voltage options from 6V to 220V DC, response times under 30ms, and magnetic blow-out arc suppression. It is widely used in electric vehicles, electric forklifts, electric winches, telecommunications equipment, and uninterruptible power supplies.
For engineers and procurement professionals, the decision to specify a DC contactor is about matching the contact capacity, coil voltage, and durability to the application’s demands. Nanfeng Electric provides the product quality, technical support, and application guidance that industrial projects require.
Request Your ZJW100A Sample for Testing
The right DC contactor makes the difference between a power system you can trust and one that fails when it matters most. If you’re designing EV battery systems, material handling equipment, or industrial DC power controls that need reliable 100A switching, the ZJW100A offers the capacity, response time, and coil voltage flexibility that demanding applications require.
Reach out to Nanfeng Electric‘s team — share your application requirements, load specifications, and control voltage. They’ll help you select the right coil voltage and mounting configuration for your specific needs.
