You're specifying power connections for an electric vehicle, a forklift, or an industrial battery system. The connector must carry high current without overheating, withstand thousands of mating cycles, and provide a secure, low-resistance connection every time. A power connector might seem like a simple component, but its design, materials, and specifications determine whether your system performs reliably or fails under load. The CHJ series disconnect connectors are engineered for exactly these demands — with current ratings from 50A to 350A, contact resistance as low as 0.06mΩ, and a service life of 10,000 mating cycles. This guide covers what makes a heavy-duty connector reliable — from current ratings and contact resistance to material selection and application fit.
The Critical Link – Where High Current Meets Reliable Disconnection
A disconnect connector serves two essential functions in a power system. First, it carries current from one component to another — a battery to a motor controller, a charger to a battery pack, or a power supply to industrial equipment. Second, it provides a convenient point of disconnection for maintenance, battery changes, or system reconfiguration. The CHJ series connectors are designed for exactly these demands, with current ratings covering 50A, 175A, and 350A at voltages up to 600V DC. This makes them suitable for a wide range of applications — from light-duty material handling to heavy industrial equipment.
The Connection That Carries the Load
The connector's current rating determines how much power it can carry without overheating. The CHJ series offers three ratings: 50A for lighter applications, 175A for medium-duty equipment, and 350A for heavy industrial and EV applications. The connector can also handle brief overloads up to four times the rated current for up to 10 seconds, providing margin for inrush currents during motor starting or capacitor charging.
The Disconnection That Enables Maintenance
The ability to disconnect quickly and easily is essential for battery-powered equipment. The CHJ series features a user-friendly design with optional handles for easy plugging and unplugging. This simplifies battery swaps, reduces downtime, and improves serviceability.

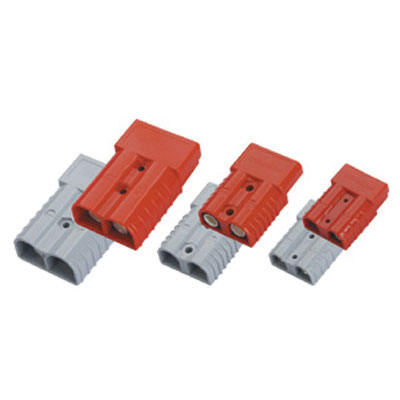

50A, 175A, or 350A – Three Current Ratings That Match Your Power Requirements
The CHJ series is available in three current ratings to match different application requirements. The 50A rating is suitable for light-duty applications such as small electric vehicles, golf carts, and portable power equipment. The 175A rating covers medium-duty applications including forklifts, electric pallet jacks, and UPS systems. The 350A rating is designed for heavy-duty applications such as large electric vehicles, industrial machinery, and high-capacity battery systems. All three ratings share the same 600V DC voltage rating, ensuring consistent performance across the series.
Matching the Rating to Your Load
Selecting the right current rating is straightforward: choose the rating that exceeds your continuous load current. For a forklift drawing 150A continuously, the 175A rating provides adequate capacity. For an EV drawing 300A, the 350A rating is the right choice. The 4x overload capacity for 10 seconds provides additional margin for inrush currents.
Voltage Rating and Insulation
All CHJ series connectors are rated for 600V DC continuous operation, with an insulation withstand voltage of 2500V DC. The insulation resistance exceeds 500MΩ, ensuring reliable isolation between circuits even in demanding environments.
PC110U Housing, T2 Silver-Plated Terminals, and 10,000 Mating Cycles – Built for the Long Haul
The durability of a connector depends on its materials and construction. The CHJ series uses PC110U housing material — a high-strength engineering plastic with UL94-V0 flame-retardant rating. This ensures the connector can withstand impact, heat, and fire without compromising safety. The terminals are made from T2 copper with silver plating, providing excellent conductivity and corrosion resistance. The connector is rated for 10,000 mating cycles, ensuring reliable performance over the life of the equipment.
The Housing That Protects
PC110U is a polycarbonate material known for its impact resistance, dimensional stability, and flame-retardant properties. The UL94-V0 rating means the material self-extinguishes within 10 seconds of flame exposure, making it suitable for applications where fire safety is a concern.
The Contacts That Conduct
T2 copper is high-purity copper with excellent conductivity. The silver plating provides a low-resistance surface that resists oxidation and maintains consistent contact resistance over thousands of mating cycles. The contact design uses manganese steel springs to maintain pressure on the mating surfaces, ensuring a secure connection even under vibration.
0.06mΩ Contact Resistance – The Specification That Minimizes Power Loss
Contact resistance determines how much heat is generated at the connection point. The CHJ series achieves a contact resistance of just 0.06mΩ — among the lowest in its class. At 350A, this resistance generates only about 7.35 watts of heat per connection. This low resistance translates to several practical benefits: less energy wasted as heat, longer component life, and more efficient power transfer.
[Why Contact Resistance Matters
Every connection introduces some resistance. In high-current applications, even small increases in contact resistance can generate significant heat. The 0.06mΩ resistance ensures that the connector itself does not become a source of power loss or overheating.
Maintaining Low Resistance Over Time
The silver-plated terminals and manganese steel spring design maintain consistent contact pressure over thousands of mating cycles. This ensures that the contact resistance remains low over the life of the connector, unlike designs that rely on friction alone.
From Forklifts to EV Charging – Where Reliable High-Current Connections Are Essential
CHJ series disconnect connectors are used across a wide range of industries and applications:
-
Electric vehicles: Battery pack connections and charging interfaces
-
Forklifts and material handling: Battery disconnects for quick swaps
-
UPS and backup power: Battery connections in critical power systems
-
Industrial machinery: Power connections for heavy equipment
-
Electric motorcycles and scooters: Compact, high-current connectors
-
Renewable energy systems: Battery connections in solar and wind storage
The connector's combination of high current capacity, low contact resistance, and 10,000-cycle durability makes it suitable for applications where reliability and serviceability are critical.
What Engineers Ask About High-Current Disconnect Connectors
What is the maximum current rating of the CHJ series?
The CHJ series is available in 50A, 175A, and 350A ratings at 600V DC. The connector can also handle brief overloads up to four times the rated current for up to 10 seconds.
What is the contact resistance?
The connector achieves 0.06mΩ contact resistance, minimizing power loss and heat generation at the connection point.
How many mating cycles can the connector withstand?
The connector is rated for 10,000 mating cycles, ensuring reliable performance over the life of the equipment.
What materials are used in construction?
The housing is made from PC110U with UL94-V0 flame-retardant rating. The terminals are T2 copper with silver plating, and the contact springs are manganese steel.
What is the operating temperature range?
The connector operates from -20°C to +105°C, making it suitable for a wide range of environments — from cold storage facilities to hot industrial settings.
Get the Right Power Connector for Your Design
Selecting the right power connector is about more than just matching amps. It's about understanding your duty cycle, thermal environment, and reliability expectations. The CHJ series gives you three clearly defined rating tiers with consistent construction quality, so you can choose the capacity you need without compromising on durability or material integrity.
Zhejiang Nanfeng Electric Co., Ltd. specializes in DC contactors and power connectors for electric forklifts, battery vehicles, tractors, excavators, automotive air conditioning, communication power supplies, UPS, and electroplating power supplies. The company adheres to a "people‑oriented, pioneering and innovating" management philosophy and pursues a market‑centered, technology‑oriented, quality‑based strategy. With TS16949, CCC, CQC, CE, FCC, UL, and TUV certifications, Nanfeng Electric delivers products that meet international standards—backed by a professional service team ready to assist you.
Contact Nanfeng Electric for configuration guidance and sample evaluation → their engineering staff can help you match the right CHJ variant to your specific load profile, environmental conditions, and expected cycle count, ensuring you get a connector that performs reliably from installation through years of service.
