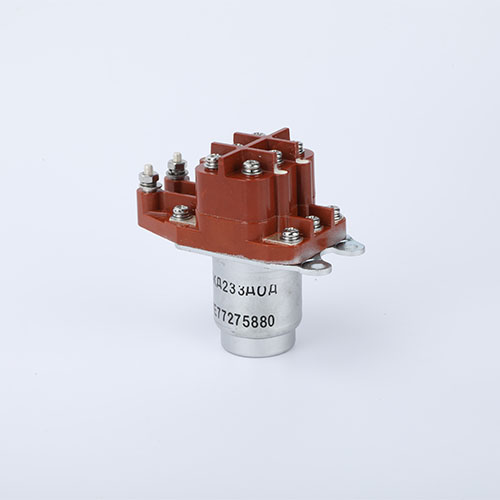

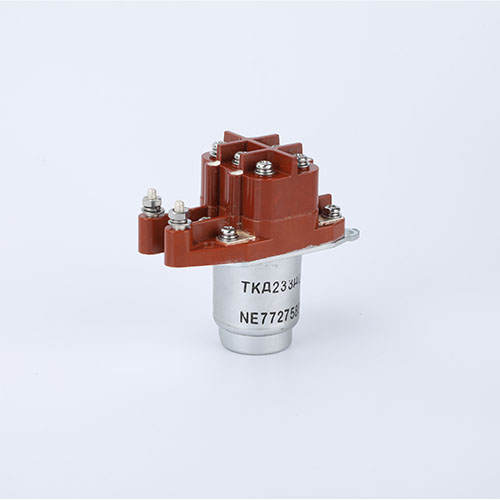

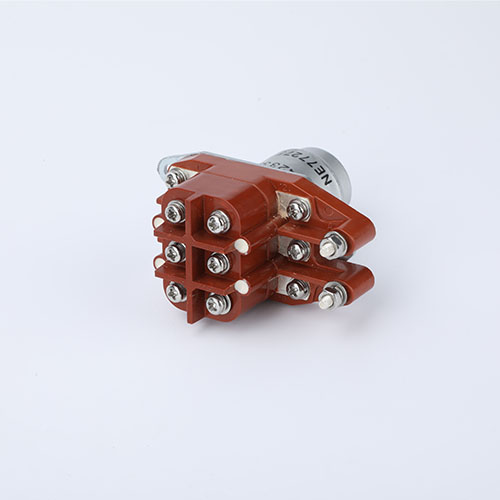

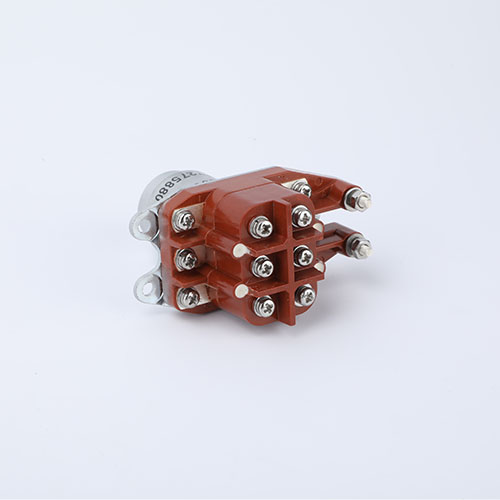

MZJ25A-11 DC contactor with 25A rated current, 27V coil, ≤50ms pick-up, low hold power ≤9W, for EV power systems.
Product Usage：
The product is mainly used in the DC power supply system of electric vehicles and other vehicles,for on/off control,and can also be used for start control in other vehicles.

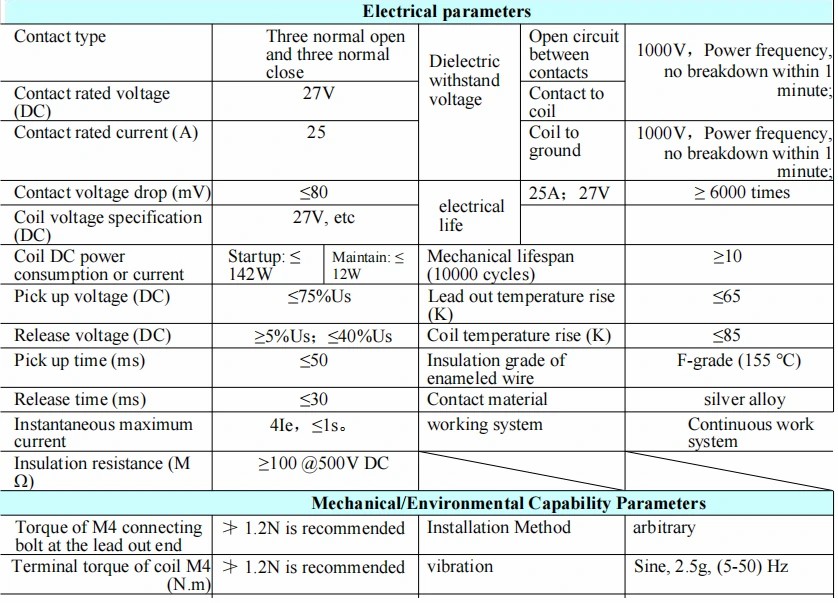

Brief technical parameters (under normal conditions)

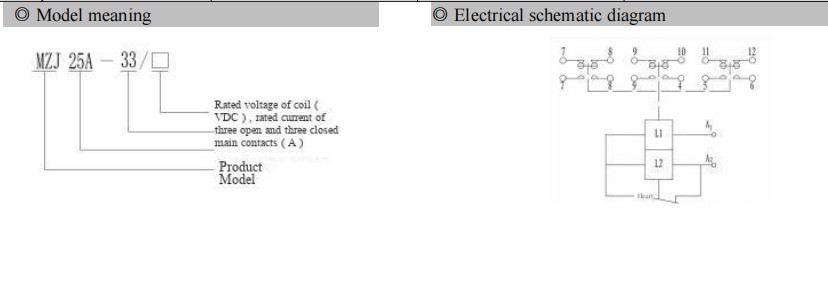

Ordering specifications Example:MZJ25A-33/27V
The main contact is a three normal open and three normal closed DC contactor with a rated voltage not exceeding DC48V,a current of 25A,and a coil voltage specification of DC27V.

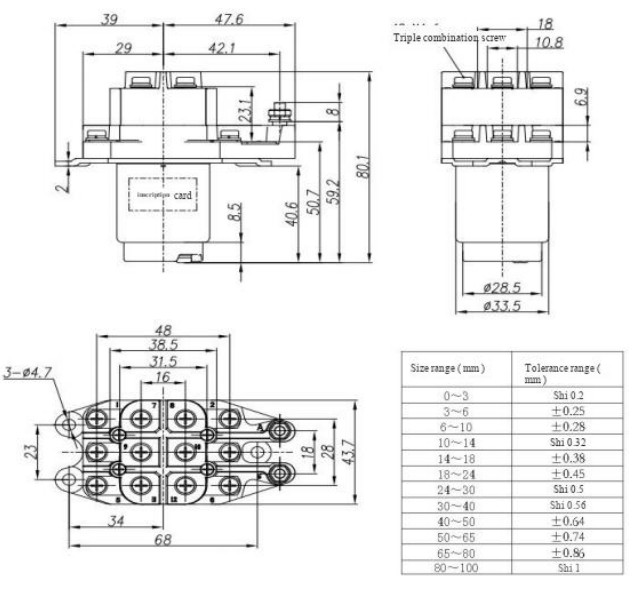

Outline and installation dimension diagram
