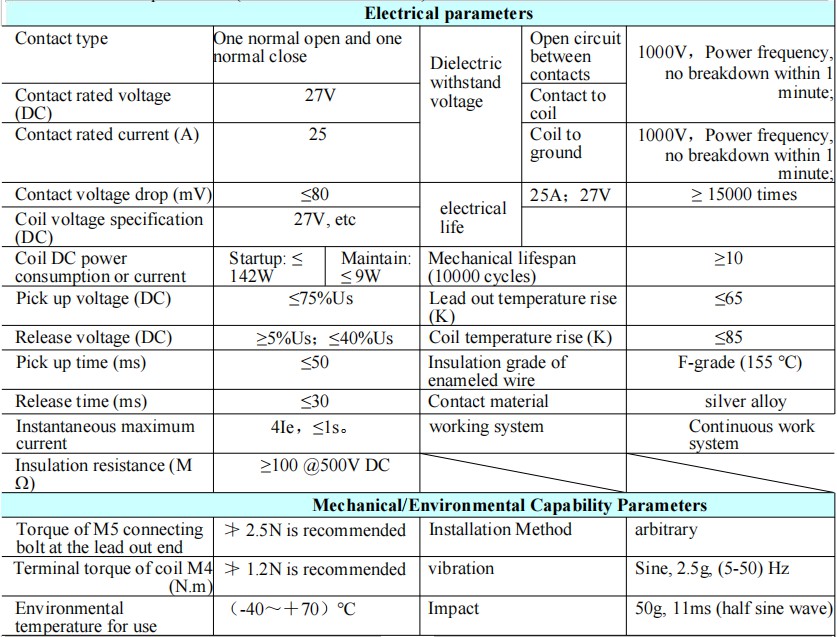

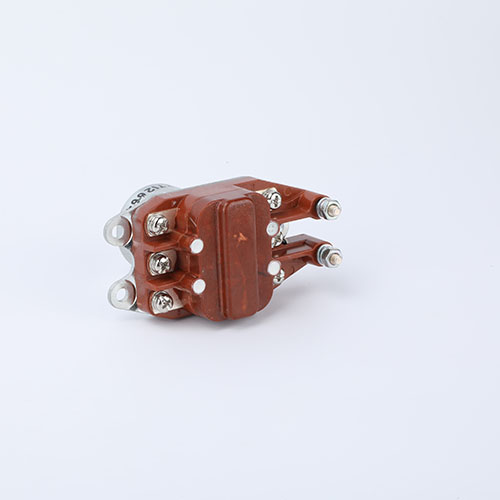

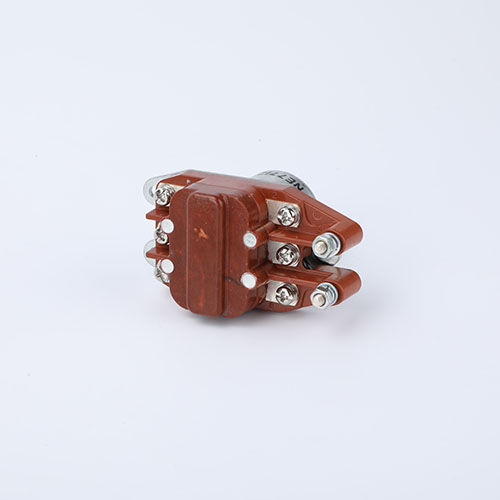

MZJ25A-11 DC contactor, 1NO+1NC, 25A/27V, ≤50ms pick-up, ≤9W hold, mechanical life ≥10,000 cycles, electrical life ≥15,000 cycles, for EV power systems.

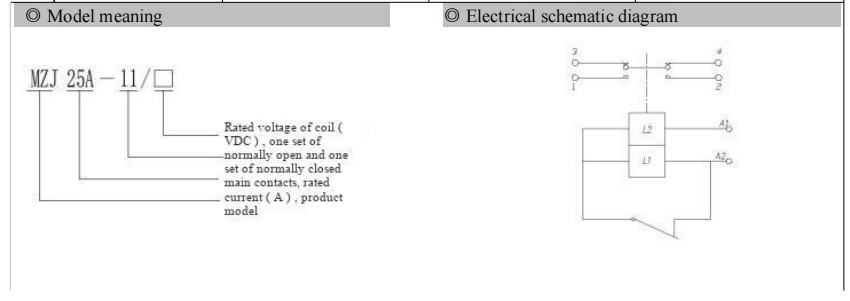

Ordering specifications Example:MZJ25A-11/27V
The main contact bridge is a DC contactor that opens and closes,with a rated voltage not exceeding DC48V, a current of 25A,and a coil voltage specification of DC27V.

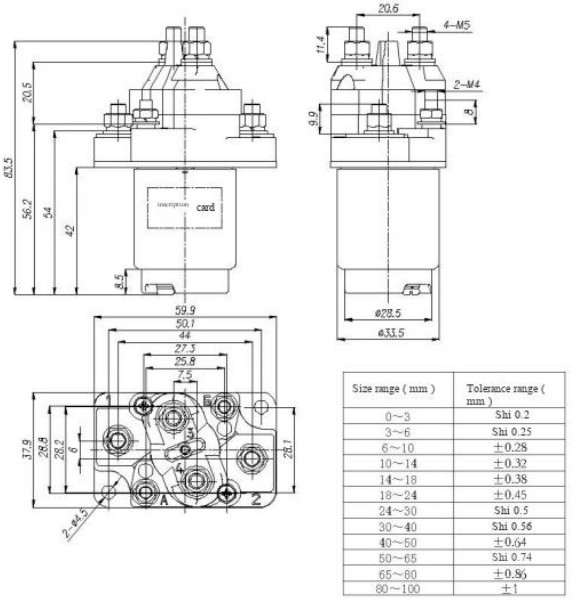

Outline and installation dimension diagram
The products are mainly used to control switching on/off of power supp
The products are mainly used to control switching on/off of power supp
