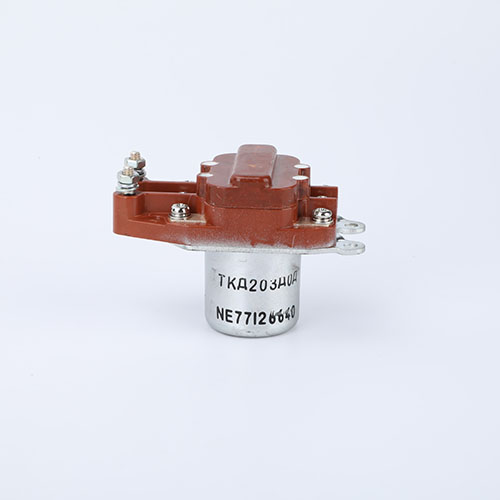

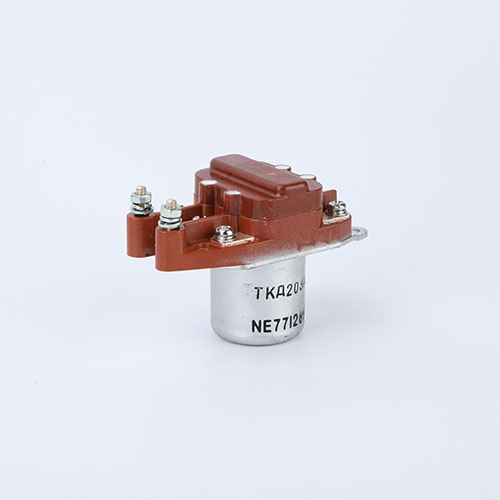

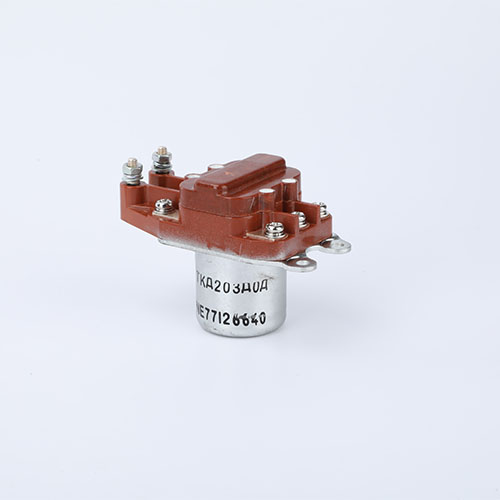

MZJ25A-30 DC contactor with three normally open contacts, 25A rated current, 27V coil, ≤11W power consumption, for EV power systems.
Product Usage
The product is mainly used in the DC power supply system of electric vehicles and other vehicles,for on/off control,and can also be used for start control in other vehicles.

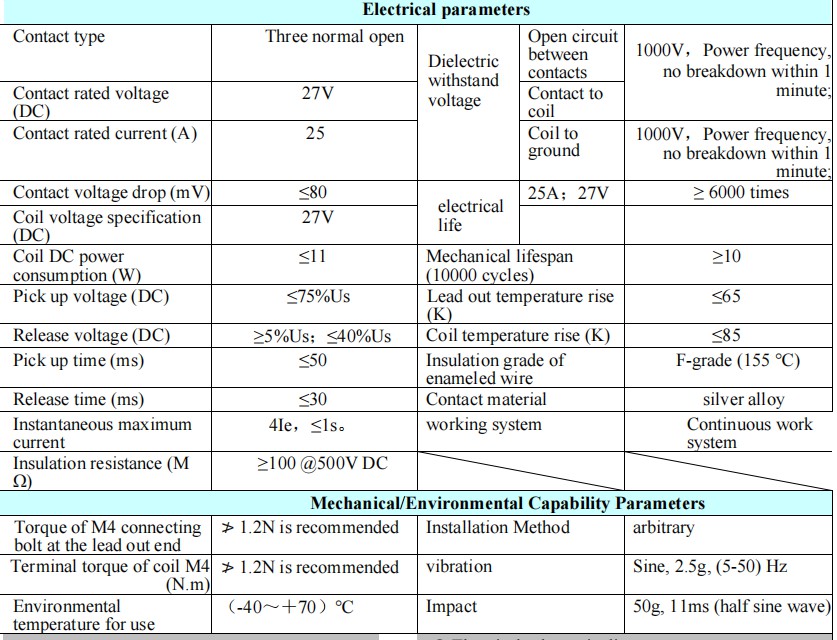

Brief technical parameters (under normal conditions)

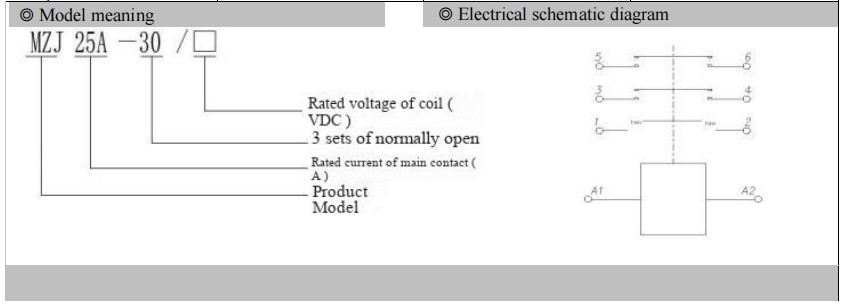

Ordering specifications Example:MZJ25A-30/27V
The main contact consists of three normal open DC contactors with a rated voltage not exceeding DC48V,a current of 25A,and a coil voltage specification of DC27V.

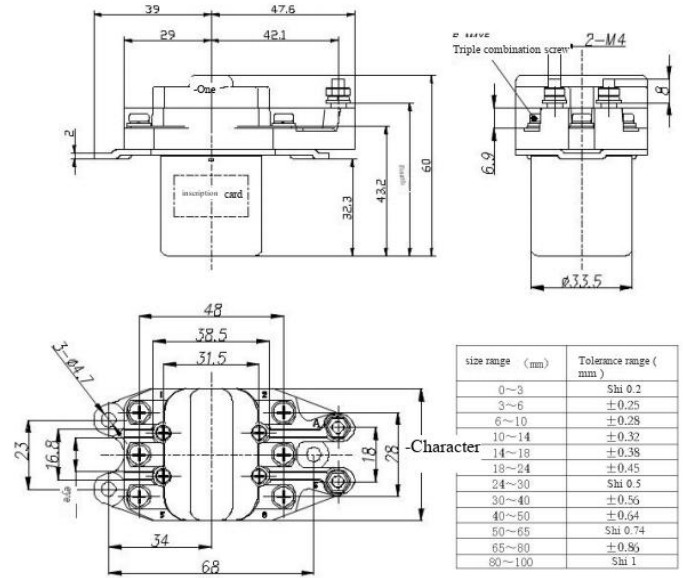

Outline and installation dimension diagram
