TK Series Type Fully Sealed High Voltage DC Contactor

TK200H Type Fully Sealed High Voltage DC Contactor

TK200H Type Fully Sealed High Voltage DC Contactor

The products are mainly used to control switching on/off of power supply of storage battery car,electric forklift, electric winch, electric car,excavator, air conditioner in vehicle

  • TK200H Type Fully Sealed High Voltage DC Contactor
ONLINE SERVICE

TEL:+86-577-62797256 62776658

FAX:+86-577-62797257

EMAIL:king@kingnan.com

Inquiry

Application

The products are mainly used to control switching on/off of power supply of storage battery car,electric forklift, electric winch, electric car,excavator, air conditioner in vehicle, power source

Ordering Notice

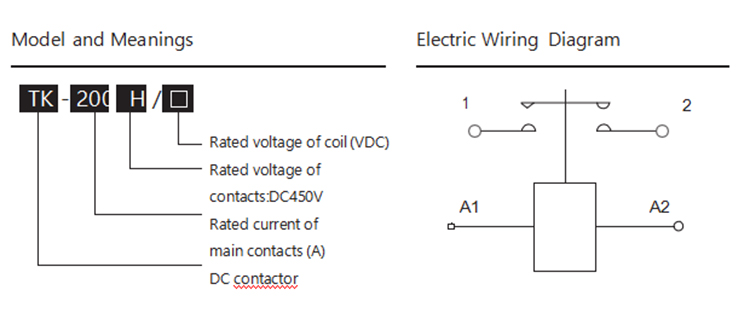

For example: TK200H/12V
The DC contactor of main contact is one NO, rated voltage not more than DC 450V, current 200A, coil

Basic Technical Parameters (at normal conditions)
Electric Parameters
Contact type One pair of bridge type moving
open (NO) contacts
Pickup voltage(DC) ≤75%Us
Rated voltage of contacts (DC) 450V, 200A Release voltage(DC) ≥5%Us;≤60%Us
Switching load capacity of contact(DC) DC600V, 100A Pickup time(ms) ≤30
DC750V, 80A Release time(ms) ≤50
DC900V, 10A Instantaneous  maximum current 1400A,≤1s
Voltage drop on contacts(mV) Insulation resistance(MΩ) ≥100
Contact overload capability ≤80
1000A
≥20s Dielectric withstand voltage 1500V,p.f. 1min, no breakdown
The test was terminated
when the temperature rise
of the outlet reached 65K.
Record power-on time
800A ≥45s Electric cycles (104) ≥1
600A ≥90s Mechanical cycles (104) ≥30
400A ≥5min Temperature rise on outgoing terminal ≤65
  ≥1h Temperature rise of coil(K) ≤85
Coil voltage specification(DC) 12V, 24V   Material of contact AgCuO(10)
Coil DC current(A) Starting current ≤3.0 Working duty Long term
Hold current ≤1.0, Acting frequency ≤1Hz
(Maintain power≤3W)
Mechanical/Ambient Conditions
Torque of outgoing terminal
on contact M8(N.m)
≯9.0N appropriate Protection grade IP67
Leading mode of coil High temperature insulated
multiple-stranded CU wire
Mounting methods Freely
Working temperature (-40~+85)°C Vibration Sine shock: 2.5g, (5~50) Hz
Mounting altitude ≤2Km Impact 50g,11ms(Half sine)
Conversion Table for Coil Specification(20°C)
Voltage(V) Coil resistance(1±10%)Ω Voltage(V) Coil resistance(1±10%)Ω
12 3
24 3

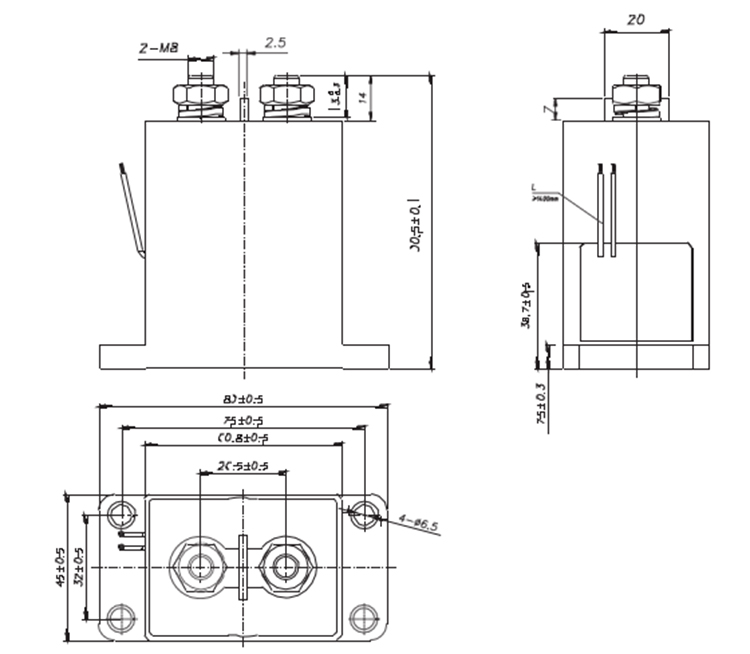

Outline and Mounting Picture
