The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V.
Application
ZJW200-40 DC Contactor In power systems, DC relays are used to protect and control the operation of the power grid; in communication equipment, DC relays can be used to control the switching and amplification of signals to ensure the stability of signal transmission.
Ordering Notice
For example: ZJW200-40S/12V
The DC contactor of main contact is 4NO, with micro switch, vertical installation, rated voltage not more than DC80V, current 200A, coil voltage is
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type | 4NO of bridge type | Instantaneous maxi (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | DC: 80V; AC: 380V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | DC: 200; AC: 60 | Dielectric withstand voltage | 2500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80(at 100A) | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 6~220V | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤24 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤70%Ue | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
| Magnetic Retention Structure Supplementary Parameter | |||
| Contact initial state | NO | Control power supply characteristics | Positive and reverse pulse power supply |
| Contact action characteristics | Coil plus positive pulse contact closure | Power pulse time | 200ms≤t≤1s |
| Coil plus reverse pulse contact disconnect | Pickup voltage(DC) | ≤75%Ue | |
| Instantaneous power consumption of the coil |
≤48.0(W) | Release voltage(DC) | ≤75%Ue |
| Mechanical/Ambient Conditions | |||
| Torque of outgoing terminal on contact M8(N.m) |
≯8.5N appropriate | Protection grade | IP50 |
| Coil wiring insert(mm) | 0.8 | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |

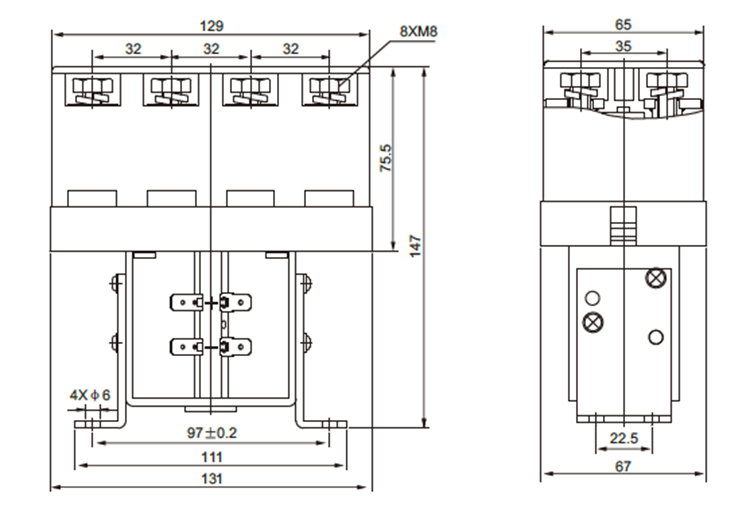

Outline and Mounting Picture
