ZJWT Series DC Contactor

ZJW200-30 DC Contactor

ZJW200-30 DC Contactor

The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V.

  • ZJW200-30 DC Contactor
ONLINE SERVICE

TEL:+86-577-62797256 62776658

FAX:+86-577-62797257

EMAIL:king@kingnan.com

Inquiry

Application

The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V. The product coil is DC powered,

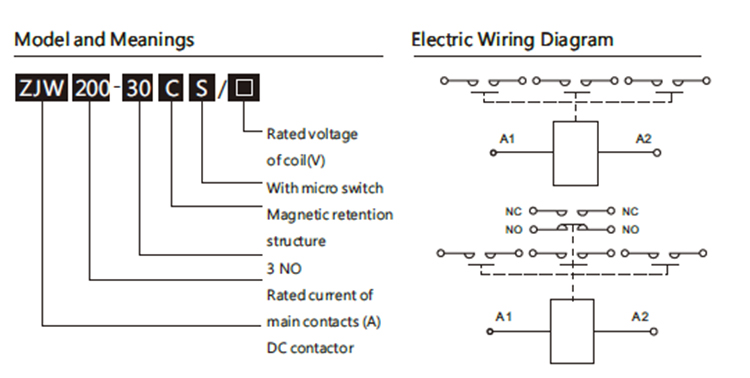

Ordering Notice

For example: ZJW200-30S/12V
The DC contactor of main contact is 3NO, with micro switch, vertical installation, rated voltage not more than DC80V, current 200A, coil voltage is

Basic Technical Parameters (at normal conditions)
Electric Parameters
Contact type 2 NO+2NC of bridge type Instantaneous maxi (closing) current 7Ie,≤1s
Rated voltage of contacts (DC) DC: 80V; AC: 380V Insulation resistance(MΩ) ≥100
Rated current of contacts (A) DC: 200; AC: 60 Dielectric withstand voltage 2500V,p.f. 1min, no breakdown
Voltage drop on contacts(mV) ≤80(at 100A) Electric cycles (104) ≥2
Coil voltage specification(DC) 6~220V Mechanical cycles (104) ≥30
DC power consumption of coil (W) ≤28 Temperature rise on outgoing terminal ≤65
Pickup voltage(DC) ≤70%Ue Temperature rise of coil(K) ≤85
Release voltage(DC) ≥5%Us;≤40%Us Insulation grade of enameled wire Class B (130°C)
Pickup time(ms) ≤30 Material of contact AgCuO(10)/Cu
Release time(ms) ≤50 Working duty Continuous operating duty
Magnetic Retention Structure Supplementary Parameter
Contact initial state NO Control power supply characteristics Positive and reverse pulse power supply
Contact action characteristics Coil plus positive pulse contact closure Power pulse time 200ms≤t≤1s
Coil plus reverse pulse contact disconnect Pickup voltage(DC) ≤75%Ue
Instantaneous power
consumption of the coil
≤48.0(W) Release voltage(DC) ≤75%Ue
Mechanical/Ambient Conditions
Torque of outgoing terminal
on contact M8(N.m)
≯8.5N appropriate Protection grade IP50
Coil wiring insert(mm) 0.8 Mounting methods Freely
Working temperature (-25~+55)°C Vibration Sine shock: 2.5g, (5~50) Hz
Mounting altitude ≤2Km Impact 50g,11ms(Half sine)

Outline and Mounting Picture

Basic size (mm) Tolerance size (mm)
0~30 ±0.2
30~60 ±0.3
60~100 ±0.5
>100 ±0.1
