ZJ Series DC Contactor

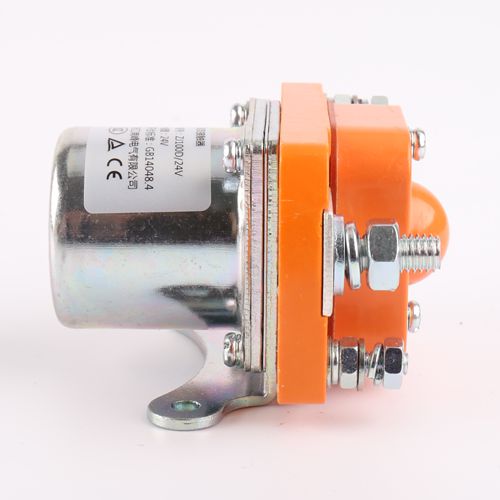

ZJ100D DC Contactor

ZJ100D DC Contactor

The products are mainly used to control switching on/off of power supply of storage battery car, electric forklift, electric winch, electric car, excavator, air conditioner in vehicle

  • ZJ100D DC Contactor
ONLINE SERVICE

TEL:+86-577-62797256 62776658

FAX:+86-577-62797257

EMAIL:king@kingnan.com

Inquiry

Application

The products are mainly used to control switching on/off of power supply of storage battery car, electric forklift, electric winch, electric car, excavator, air conditioner in vehicle, power source

Ordering Notice

For example: ZJ100D/12V
The DC contactor of main contact is one NO, rated voltage not more than DC 80V, current 100A, coil

Basic Technical Parameters (at normal conditions)
Electric Parameters
Contact type One pair of bridge type moving
open (NO) contacts
Instantaneous maxi (closing) current 7Ie,≤1s
Rated voltage of contacts (DC) ≤80V Insulation resistance(MΩ) ≥100
Rated current of contacts (A) 100 Dielectric withstand voltage 1500V,p.f. 1min, no breakdown
Voltage drop on contacts(mV) ≤80 Electric cycles (104) ≥2
Coil voltage specification(DC) 12V, 24V, 48V, 72V etc Mechanical cycles (104) ≥30
DC power consumption of coil (W) ≤7.0 Temperature rise on outgoing terminal ≤65
Pickup voltage(DC) ≤75%Us Temperature rise of coil(K) ≤85
Release voltage(DC) ≥5%Us;≤40%Us Insulation grade of enameled wire Class B (130°C)
Pickup time(ms) ≤30 Material of contact AgCuO(10)/Cu
Release time(ms) ≤50 Working duty Continuous operating duty
Mechanical/Ambient Conditions
Torque of outgoing
terminal  on contact M6(N.m)
≯4.5N appropriate Protection grade IP50
Torque of outgoing
terminal  on coil M4(N.m)
≯1.2N appropriate Mounting methods Freely
Working temperature (-25~+55)°C Vibration Sine shock: 2.5g, (5~50) Hz
Mounting altitude ≤2Km Impact 50g,11ms(Half sine)
Conversion Table for Coil Specification(20°C)
Voltage(V) Coil resistance(1±10%)Ω Voltage(V) Coil resistance(1±10%)Ω
12 22.5 60 532.8
24 86 72 797.5
48 352 80 984.6

Outline and Mounting Picture
