JX Series DC Contactor

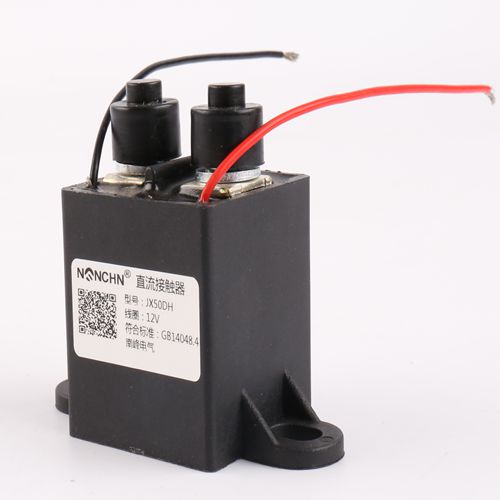

JX50DH DC Contactor

JX50DH DC Contactor

The products are mainly used to control switching on/off of power supply of storage battery car, electric forklift, electric winch, electric car, excavator, air conditioner in vehicle

  • JX50DH DC Contactor
ONLINE SERVICE

TEL:+86-577-62797256 62776658

FAX:+86-577-62797257

EMAIL:king@kingnan.com

Inquiry

Application

The products are mainly used to control switching on/off of power supply of storage battery car, electric forklift, electric winch, electric car, excavator, air conditioner in vehicle, power source

Ordering Notice

For example: JX50DH/12V
The DC contactor of main contact is NO, special installation method, rated voltage not more than DC

Basic Technical Parameters (at normal conditions)
Electric Parameters
Contact type NO of Bridge type Insulation resistance(MΩ) ≥100
Rated voltage of contacts (DC) ≤72V Dielectric withstand voltage 500V,p.f. 1min, no breakdown
Rated current of contacts (A) 50 Electric cycles (104) ≥2
Contact contact resistance (mΩ) ≤5 Mechanical cycles (104) ≥30
Coil voltage specification(DC) 12V, 24V, 48V etc Temperature rise on outgoing terminal ≤65
DC power consumption of coil (W) ≤5.0 Temperature rise of coil(K) ≤85
Pickup voltage(DC) ≤75%Us Insulation grade of enameled wire Class B (130°C)
Release voltage(DC) ≥5%Us;≤40%Us Material of contact AgCuO(10)/Cu
Pickup time(ms) ≤30 Working duty Continuous operating duty
Release time(ms) ≤50
Mechanical/Ambient Conditions
Torque of outgoing terminal
on contact M6(N.m)
≯4.5N appropriate Protection grade IP56
Coil lead-out method Multi-strand silver plated soft
copper insulated wire
Mounting methods Freely
Working temperature (-25~+55)°C Vibration Sine shock: 2.5g, (5~50) Hz
Mounting altitude ≤2Km Impact 50g,11ms(Half sine)

 Outline and Mounting Picture
